See your way to high footprint utilization, greater energy efficiency and enhanced display with Linkool glass door cooler.
Linkool upright cooler focus on the needs of the modern retailer. Space utilization and shopper comfort have been significantly improved while operational costs have been reduced, thereby enabling retailers to maximize profits.
The air management system is specifically designed to maximize the shelf depth to cabinet depth ratio. The location of the evaporator and fan wall in the top of the cabinet further improves the utilization of space. The result is an improvement of up to 27% compared with equivalent existing models. More space is made available for products, and they are closer to the shopper – making selection much easier.
The specially designed glass doors provide an unhindered view of products but prevent the shopping aisle from getting cooled, thereby improving the customer’s shopping experience. Additionally, the all-glass doors, in combination with Linkool’s air management system, will result in energy savings of up to 55% when compared with existing equivalent upright cooler.
Standard Features:
Higher evaporating temperature
New energy-saving solutions
Ergonomic door handles
Insulated double glass doors
self closing doors
Various light colors available
A wide range of interior and exterior colors
Technical parameter:
| Export Model | KLG-750 | KLG-1253 | KLG-1880 | KLG-2500 |
| Voltage/frequency | 220V/50Hz | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Refrigerant | R290/R134a | R290/R134a | R290/R134a | R290/R134a |
| Foaming agent | Cyclopentane,60MM thickness | Cyclopentane,60MM thickness | Cyclopentane,60MM thickness | Cyclopentane,60MM thickness |
| Max Ambient | 38℃ at 65%RH | 38℃ at 65%RH | 38℃ at 65%RH | 38℃ at 65%RH |
| Inner temperature | 1℃ to 8℃ | 1℃ to 8℃ | 1℃ to 8℃ | 1℃ to 8℃ |
| Volume | 600 | 1000L | 1530 | 2060 |
| Product Dimension W*D*H (mm) | 750*710*1997 | 1253*750*2092 | 1880*750*2092 | 2508*750*2092 |
| Packing Dimension W*D*H(mm) | 775*760*2090 | 1278*760*2220 | 1905*760*2220 | 2533*760*2220 |
| Net weight(kg) | 130 | 172 | 242 | 355 |
| Gross weight(kg) | 141.5 | 202 | 282 | 410 |
| Container Loads 40GP/ 40HQ | 45 | 27 | 18 | 12 |
| Door type | 1 Hinge | 2 Hinge | 3 Hinge | 4 Hinge |
| Glass door | Double-pane with one tempered low-E coated glass door | Double-pane with one tempered low-E coated glass door | Double-pane with one tempered low-E coated glass door | Double-pane with one tempered low-E coated glass door |
| Cabinet | White, painted steel | White, painted steel | White, painted steel | White, painted steel |
| Interior | White, painted aluminum walls | White, painted aluminum walls | White, painted aluminum walls | White, painted aluminum walls |
| Color&Branding | Optional | Optional | Optional | Optional |
| Cooling system | Fan cooling | Fan cooling | Fan cooling | Fan cooling |
| Defrosting | Automatic | Automatic | Automatic | Automatic |
| Evaporator | Aluminium fin block | Aluminium fin block | Aluminium fin block | Aluminium fin block |
| Evaporator fan motor | 1×EMB | 1×EMB | 2×EMB | 3×EMB |
| Condenser | Steel wire | Steel wire | Steel wire | Steel wire |
| Condenser fan motor | 1×EMB | 1×EMB | 1×EMB | 2×EMB |
| Light | 2 cabinet lights, LED | 1 canopy light+ 2 cabinet lights, LED | 1 canopy light+ 4 cabinet lights, LED | 1 canopy light+ 4 cabinet lights, LED |
| Light switch | Yes | Yes | Yes | Yes |
| Temperature controller | Digital | Digital | Digital | Digital |
| Water tray | Self-evaporation | Self-evaporation | Self-evaporation | Self-evaporation |
| Castor | 4 castors, front 2 with brakes | 4 castors, front 2 with brakes | 4 castors, front 2 with brakes | 8 castors, front 2 with brakes |
| Shelf (Material/Qty) | Epoxy coated wire shelves / 5 | Epoxy coated wire shelves / 10 | Epoxy coated wire shelves / 15 | Epoxy coated wire shelves / 20 |
| K clips and shelf support liners | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Price tag | No | No | No | No |
| Light box | NO | Yes | Yes | Yes |
| Lock & key | No | No | No | No |

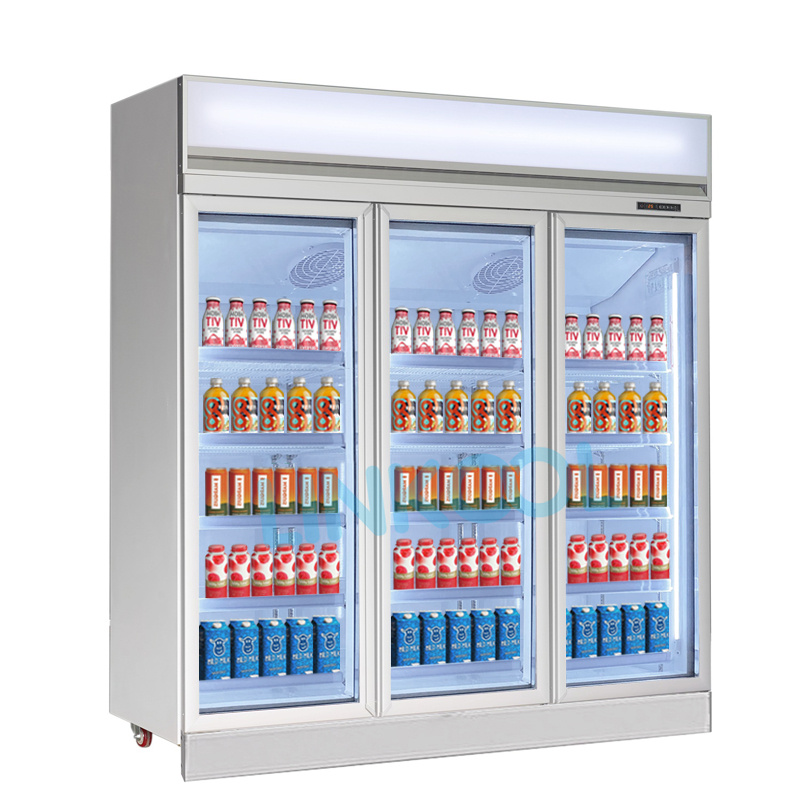

The three-door top-mounted upright display refrigerator is designed for efficient commercial use, with a stable
temperature range of 0–10°C. Available in 1 to 4 door configurations, it offers flexible capacity to meet different
business needs, making it an ideal beverage cooler for supermarkets, convenience stores, cafés, and restaurants.
Featuring a sleek glass door cooler design, the unit provides clear product visibility, helping customers quickly find
beverages, dairy products, and fresh items. Its modern appearance enhances store layout while supporting strong
merchandising performance, especially when paired with larger systems such as a supermarket freezer or
commercial display freezer setup.
The top-mounted refrigeration system ensures better heat dissipation and faster cooling recovery, maintaining
consistent temperatures even during frequent door openings. Combined with a fan cooling system, it delivers even
airflow across all shelves for reliable performance.
With its flexible door options, strong display effect, and energy-efficient operation, this unit is a practical solution for
businesses looking to optimize both chilled storage and product presentation alongside commercial display freezer
and supermarket freezer equipment.
Fan Dynamic Cooling
Fan cooling system/ventilator
cooling/Dynamic cooling/Forced air
circulation, Hot gas Auto- defrost
Heavy Duty Shelves
Adjustable for merchandising; 30 kg Load endurance / shelf
5 pieces per door of PVC shelf,
The upright display fridge.efficient and stylish,enhances supermarkets.convenience stores,and bars.It keeps perishables fresh in
supermarkets.organizes beverages in convenience stores,and attracts patrons in bars,boosting sales and customer satisfaction.
Linkool is an internationally operating manufacturer of commercial refrigeration company, Lincool(Zhongshan) Electrical equipment
leading innovator of temperature-controlled food display cases for supermarket and foodservice operators, produce all range of
plug-in&Remote Multiple doors display chiller&display freezer,Open air chiller,Combine Island freezer,Server counter etc.
Total 35000m2 and 20000+m2 workshops designed capacity of 120000 units per year,In 2014,our company rated as "China
famous brand"by the Federation,In 2018 Company approved by SGS&Obtain IS09001,IS014000 Certificate. most of our products
got CE,CB,GEMS,MEPS,SABER,ETL,NSF7,DOE etc certificate.
